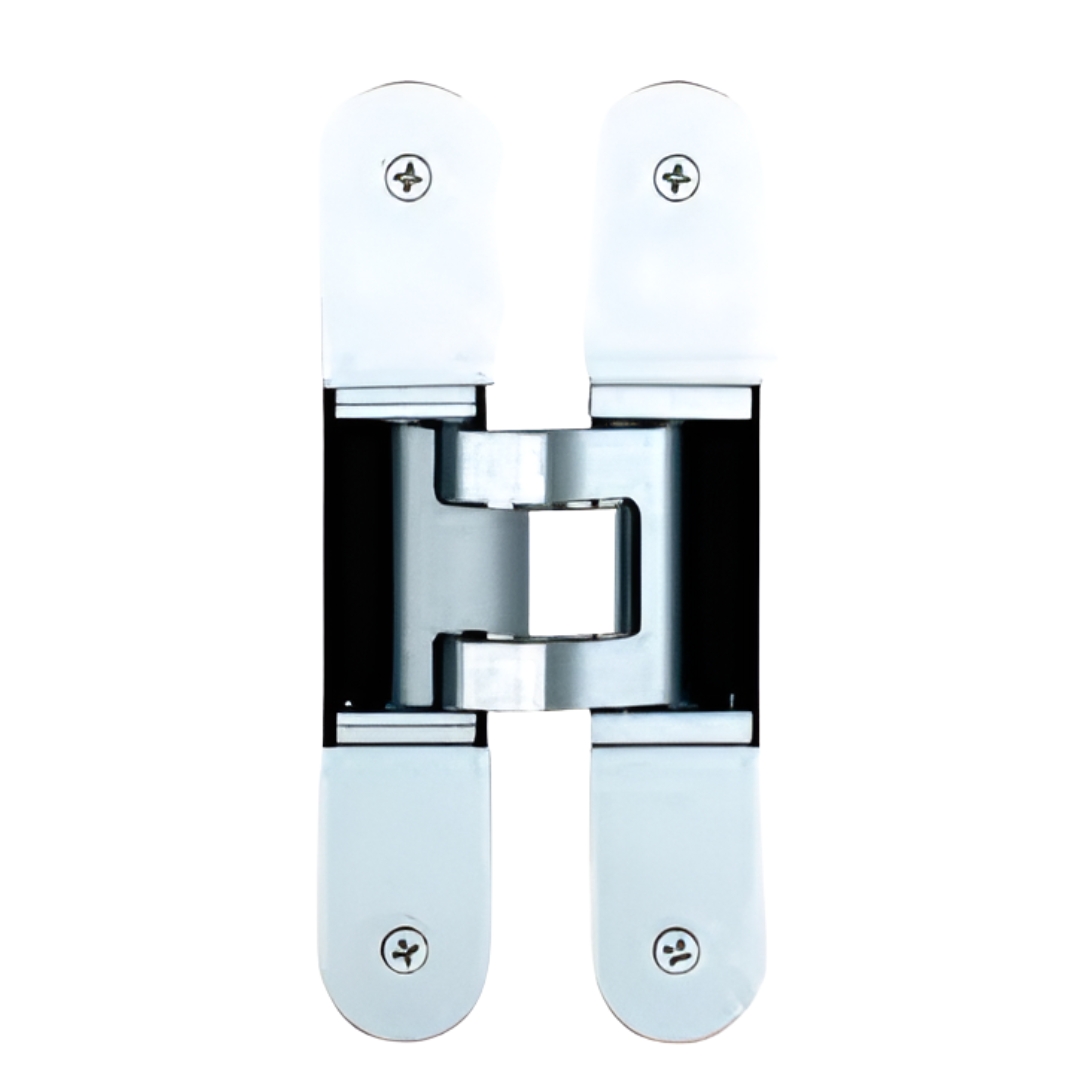

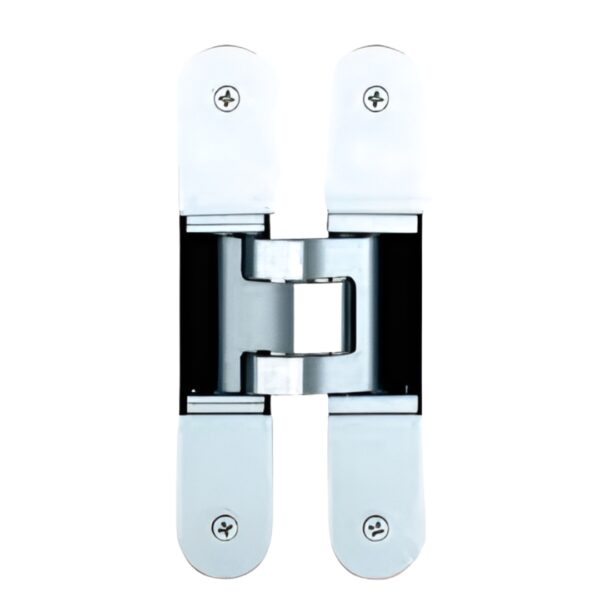

3D Concealed Hinges – Zinc Alloy

Sizes:

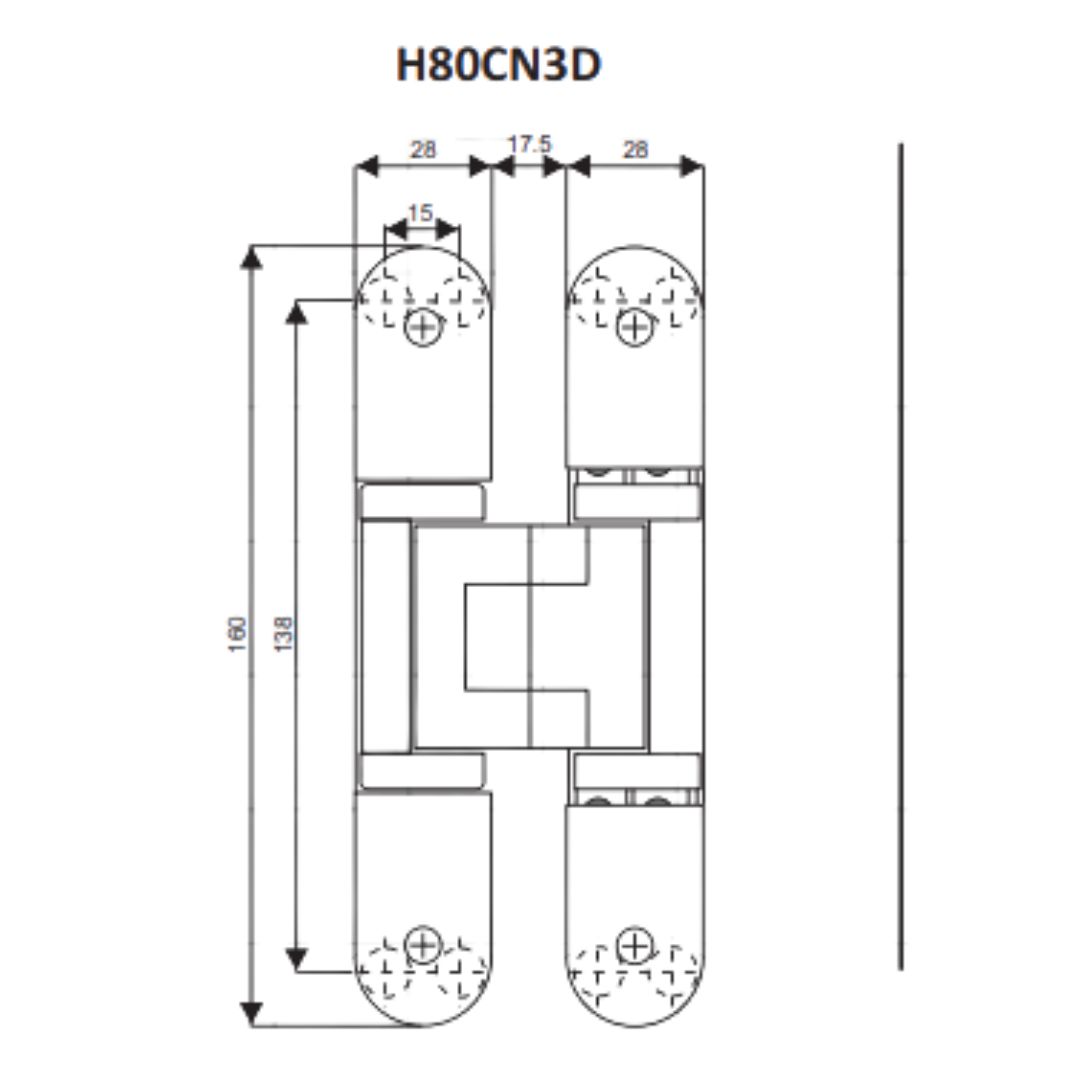

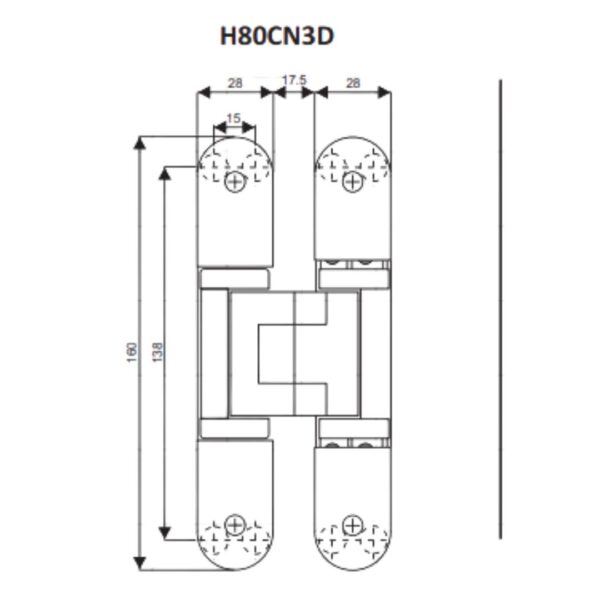

H80CN3D 28 x 160mm 80 kgs / 2 hinges per door

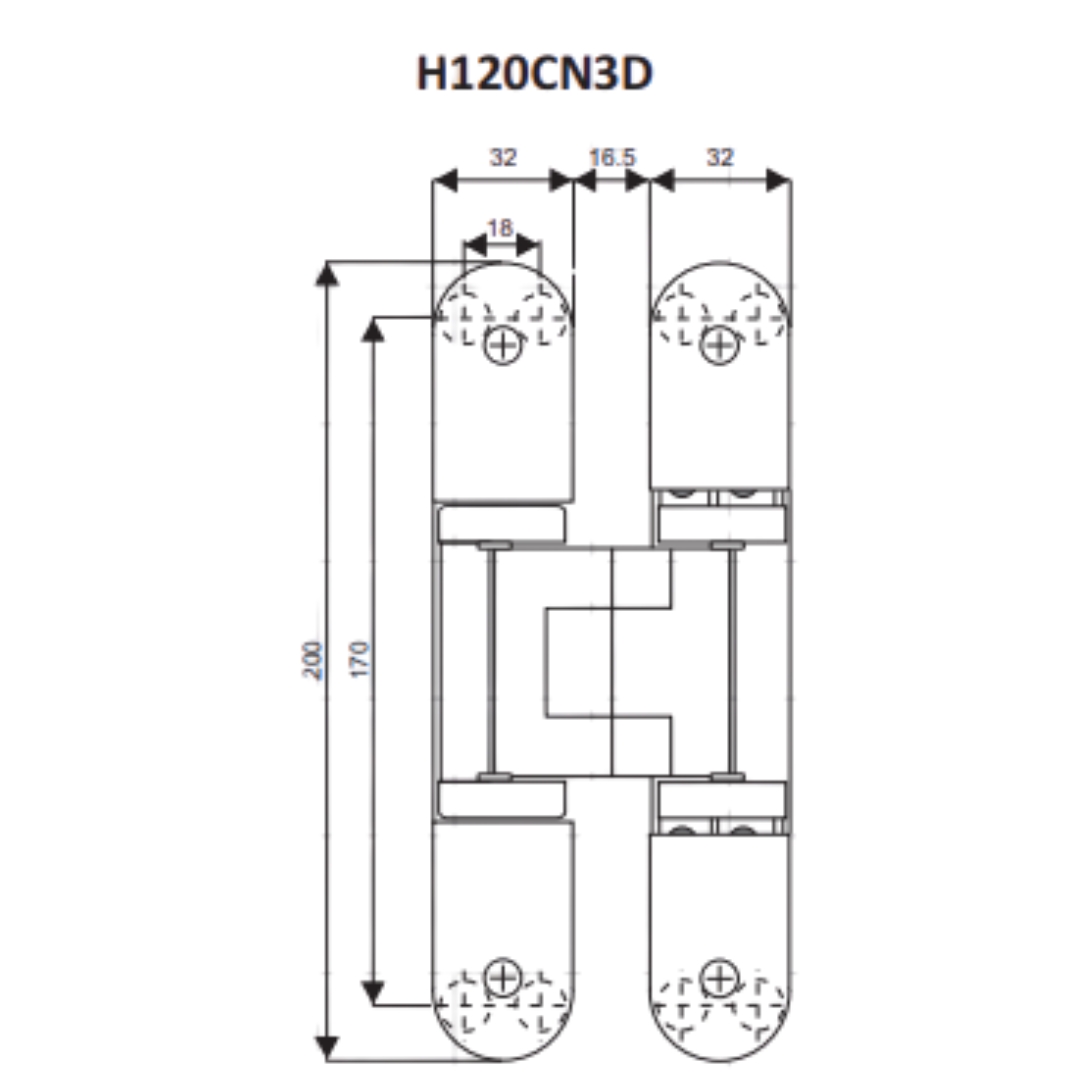

H120CN3D 32 x 200mm 120 kgs / 2 hinges per door

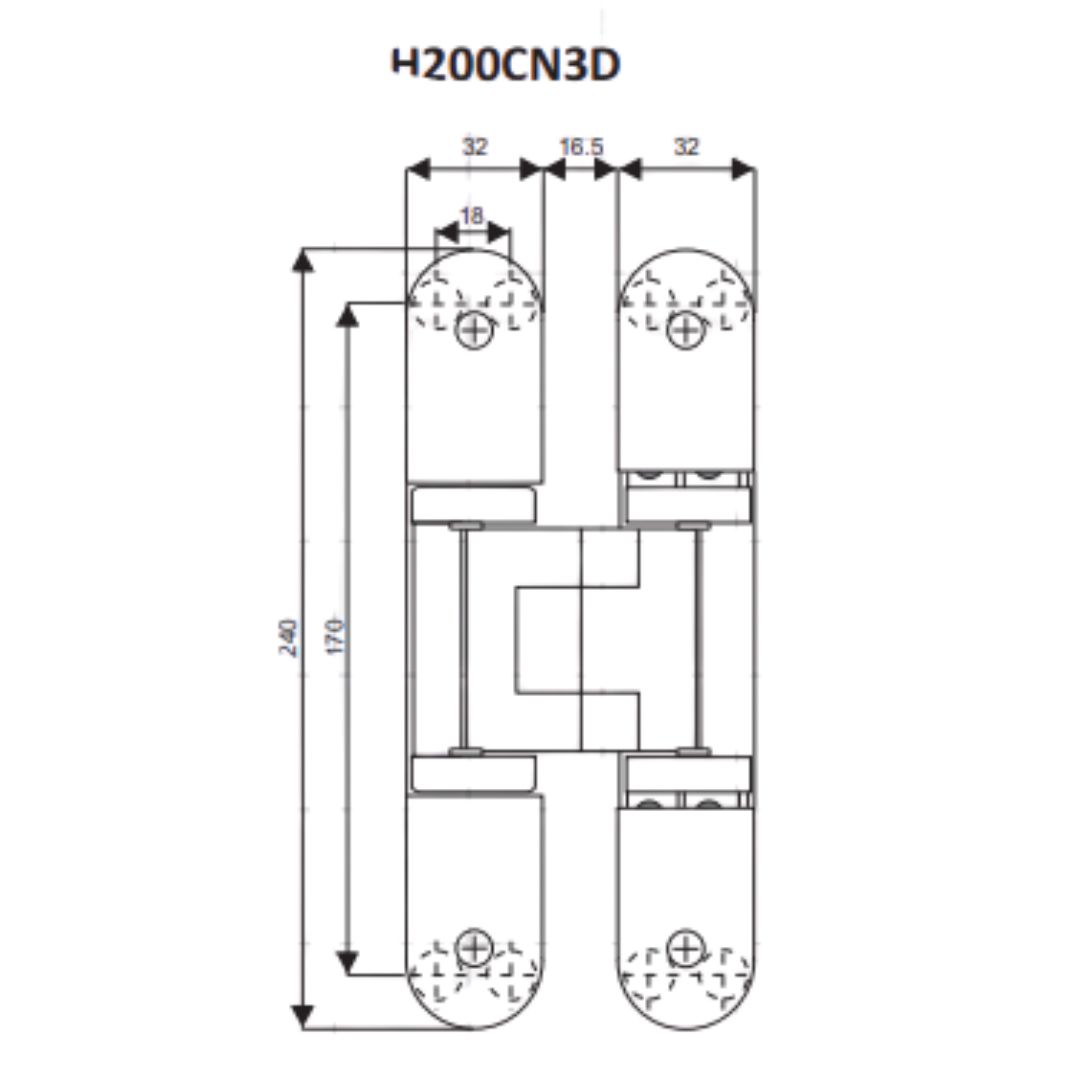

H200CN3D 32 x 240mm 200 kgs / 2 hinges per door

Material	: Zinc Alloy
Door Weight	≤80 Kgs, ≤120 kgs, ≤200 kgs per 2 Hinges
Opening Angle	180 Degrees
Door Thickness	>40mm
Mounting	Screw fixing, suitable for DIN le and DIN right hand
Concealed installaon	vandal deterrent, connuously 3D adjustable, height, side and closing pressure ± 1mm
