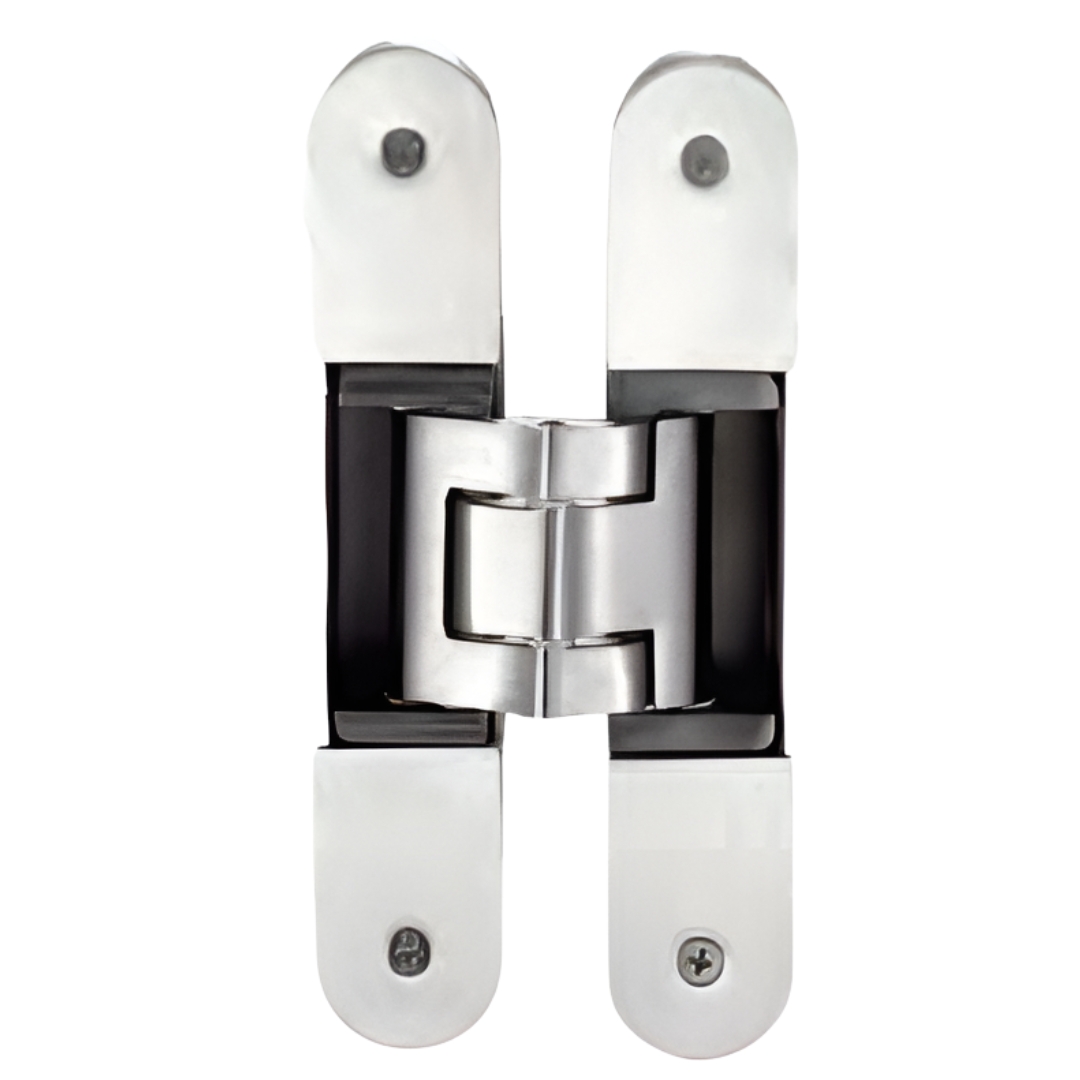

3D Concealed Hinges – Stainless Steel

Sizes:

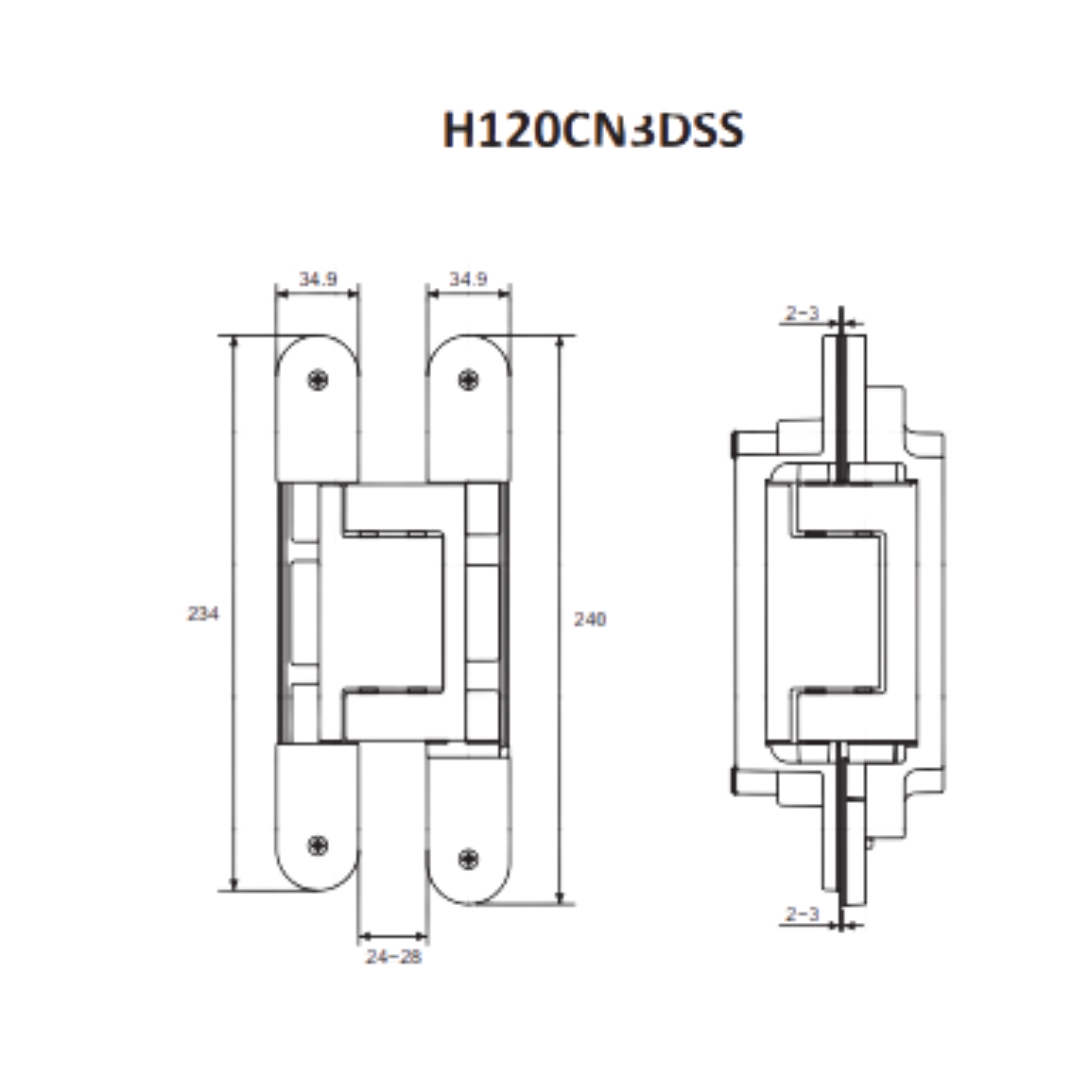

H120CN3D 30x160mm 120kgs/2 hinges per door

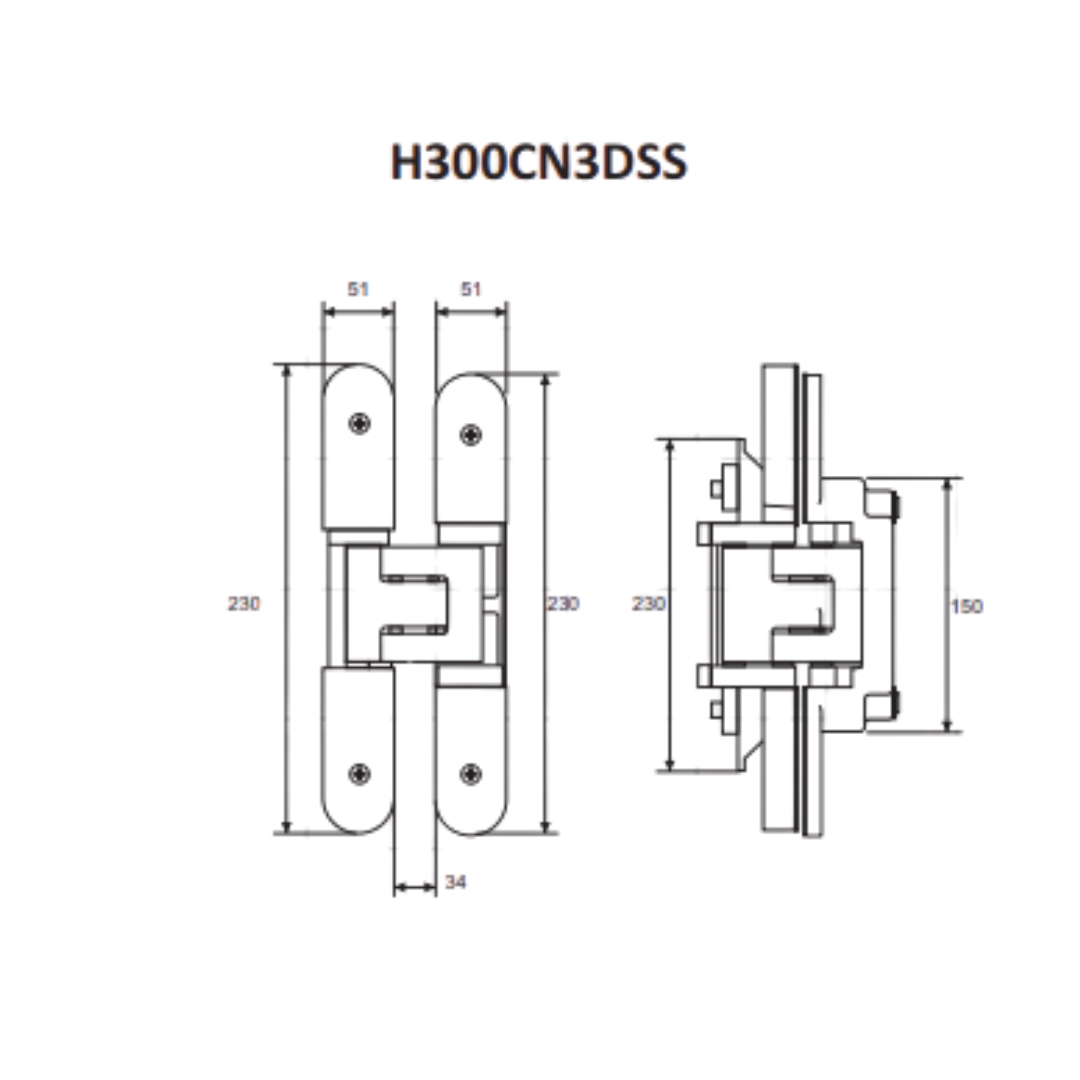

H300CN3D 51x230mm 300kgs/2 hinges per door

Material	Stainless Steel SS304
Door Weight	≤120 kgs, ≤300 kgs per 2 Hinges
Opening Angle	180 Degrees
Door Thickness	>40mm
Mounting	Screw fixing, suitable for DIN le and DIN right hand
Concealed installation	vandal deterrent, connuously 3D adjustable, height, side and closing pressure ± 1mm
